Bridge Production: Your Path to Full Scale Manufacturing with 3D Printing
Bridge production sits in that critical space between prototype approval and full-scale manufacturing. It’s where many Charlotte-area businesses find themselves stuck - with validated designs but uncertain demand, or waiting months for injection molding tooling. 3D printing transforms this traditionally risky phase into a strategic advantage.
What Is Bridge Production?
Bridge production uses intermediate manufacturing methods to produce parts while permanent tooling is being developed. It typically covers quantities from 50 to 5,000 units, though the exact range depends on part complexity and material requirements. For businesses transitioning from prototype to market, it provides real products for real customers without the massive upfront investment of traditional manufacturing.
The concept isn’t new - manufacturers have used soft tooling and cast urethane for decades. What’s changed is that modern FDM 3D printing now offers the consistency, material properties, and cost structure to make bridge production genuinely viable for a much wider range of applications.
When Bridge Production Makes Business Sense
Market validation drives most bridge production decisions. Consider a Charlotte startup developing a new industrial sensor housing. They’ve tested prototypes extensively, but committing $50,000 to injection molding tooling feels premature when they’re still refining their go-to-market strategy. Bridge production lets them fulfill initial orders, gather customer feedback, and iterate on the design - all while building revenue.
Seasonal products present another compelling case. A company making specialized drone components for agricultural monitoring might need 500 units for the spring planting season. By the time traditional tooling would be ready, they’ve missed their market window. 3D printing delivers those parts in weeks, not months.
Supply chain disruptions have made bridge production a risk mitigation strategy. When overseas tooling gets delayed or minimum order quantities jump unexpectedly, local 3D printing provides a release valve. We’ve seen this particularly in the automotive aftermarket, where classic car restoration shops need parts that original suppliers discontinued decades ago.

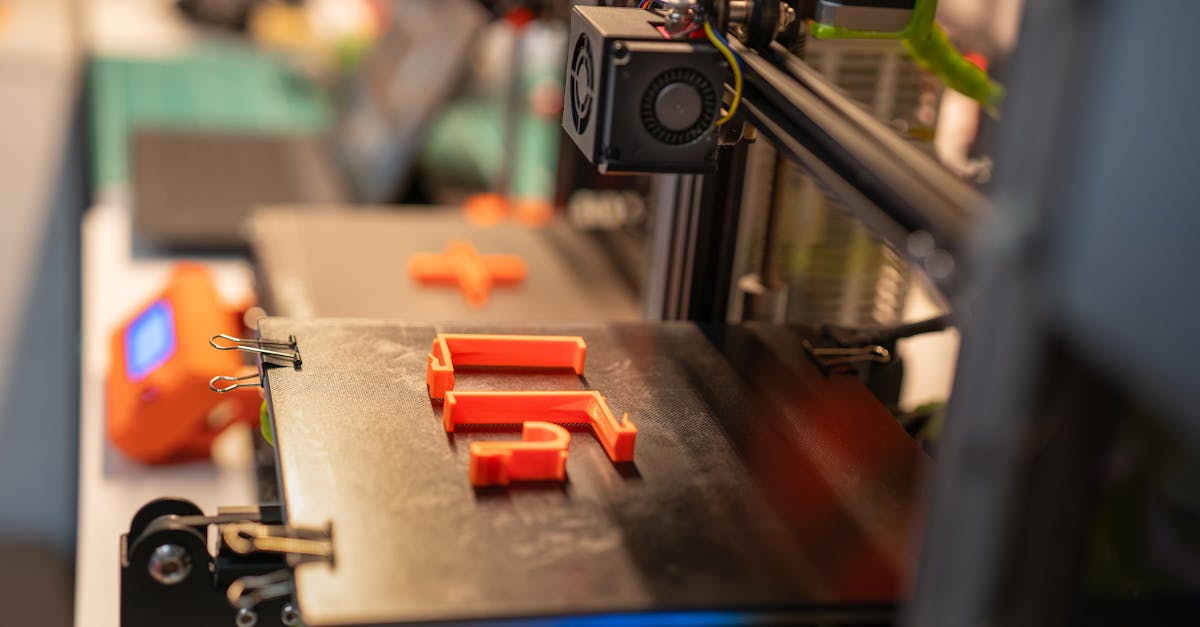

Photo by Jakub Zerdzicki on Pexels
Material Considerations for Bridge Production
Not every 3D printing material suits bridge production. While PLA works beautifully for prototypes and display models, its temperature sensitivity limits real-world applications. PETG emerges as the bridge production workhorse - offering chemical resistance, moderate temperature tolerance up to 80°C, and excellent layer adhesion for consistent part quality across hundreds of units.
For outdoor applications or parts seeing UV exposure, materials matter even more. While ASA provides superior UV resistance compared to standard plastics, businesses must weigh the increased material cost against their specific requirements. A drone housing that spends most of its life in a case might perform perfectly in PETG, while a permanent outdoor fixture demands more robust materials.
Consistency becomes paramount at bridge production volumes. Running 10 prototypes allows for individual inspection and minor variations. Running 500 units requires tighter process control. This means maintaining consistent bed temperatures, monitoring ambient conditions, and implementing batch quality checks. Professional FDM printers with enclosed chambers and active temperature management make this possible.
Design Optimization for Bridge Production
Bridge production demands different design thinking than one-off prototypes. Wall thicknesses that print beautifully on a single part might warp when you’re running continuous production. Features that seemed clever in CAD might add unnecessary print time when multiplied by 500 units.
Smart design for bridge production starts with understanding FDM’s strengths. Self-supporting angles reduce support material waste. Consistent wall thicknesses prevent differential cooling. Strategic part orientation minimizes both print time and post-processing labor. A part that takes 3 hours to print and 30 minutes to clean up might seem reasonable for a prototype. Multiply that by 200 units, and you’re looking at 700 hours of production time.
Part consolidation often provides the biggest wins. Traditional manufacturing might require a three-part assembly due to molding constraints. 3D printing can produce that as a single component, eliminating assembly labor and potential failure points. This advantage compounds at bridge production volumes where assembly time directly impacts unit cost.
Cost Analysis: Breaking Down the Numbers
Understanding the true cost of bridge production requires looking beyond material expenses. Let’s examine a hypothetical scenario: producing 250 custom enclosures for an IoT device.
Traditional injection molding might quote:
- Tooling: $15,000-25,000
- Per-unit cost: $3-5
- Lead time: 10-14 weeks
- Minimum order: 1,000 units
For 250 units, you’re paying for 750 extras you don’t need, plus tooling that might become obsolete if the design changes.
3D printing the same parts in PETG might run:
- Setup/programming: $200-500
- Per-unit cost: $15-25 (including material and machine time)
- Lead time: 2-3 weeks
- Minimum order: 1 unit
The per-unit cost is higher, but the total project cost for 250 units often favors 3D printing. More importantly, design changes cost almost nothing compared to retooling an injection mold.
Quality Control Strategies
Scaling from prototypes to bridge production requires systematic quality control. First article inspection establishes the baseline - measuring critical dimensions, checking material properties, and documenting any post-processing requirements. But that’s just the beginning.
Statistical process control makes sense even at modest volumes. Checking every 10th or 20th part for key dimensions catches drift before it becomes scrap. For critical applications, maintaining a retained sample from each build provides traceability. Digital photography of each batch documents consistent appearance and finish.
Build plate mapping prevents location-based variations. FDM printers can exhibit slight differences in part quality based on position. Parts near the edges might cool differently than those in the center. Professional operations rotate part positions between builds to average out these variations.
Post-Processing at Scale
Post-processing efficiency determines bridge production viability. Support removal that takes 5 minutes on a prototype becomes 20 hours of labor across 250 units. This reality drives design decisions from the start.
Batch processing transforms economics. Vapor smoothing 20 parts takes barely more time than smoothing one. Media blasting can handle multiple parts simultaneously. Even manual operations benefit from jigs and fixtures that standardize the process. We design custom post-processing fixtures that hold parts at consistent angles for support removal or surface finishing.
Consider the end-use requirements carefully. Parts for internal mechanisms might need minimal finishing. Customer-facing components might require vapor smoothing or primer/paint. Understanding these requirements upfront prevents costly rework.
Managing Customer Expectations
Clear communication prevents bridge production disappointments. 3D printed parts differ from injection molded ones - in appearance, in precise dimensional tolerance, and sometimes in mechanical properties. Setting expectations upfront builds trust and prevents returns.
Provide sample parts whenever possible. Photos don’t capture surface texture or layer lines the way holding an actual part does. For critical applications, produce a small pilot run before committing to full bridge production. This validates both the manufacturing process and customer acceptance.
Document everything relevant to part performance. Material data sheets, process parameters, and testing results build confidence. For regulated industries, this documentation becomes mandatory. Even for general commercial applications, it demonstrates professionalism and quality commitment.
Transitioning to Full Production
Bridge production should include an exit strategy. As volumes grow, the economics shift toward traditional manufacturing. The question becomes when, not if, to transition.
Smart bridge production planning creates a smooth handoff. CAD files developed for 3D printing need review for moldability. Parts might need draft angles added or undercuts eliminated. Wall thicknesses that work in FDM might require adjustment for injection molding. Starting this design review early prevents delays when volumes justify tooling investment.
Some products never leave bridge production. Specialized drone components with annual volumes of 200-500 units might 3D print indefinitely. The flexibility to modify designs, produce variants, and avoid inventory commitments outweighs the higher per-unit cost. This particularly applies to products with short lifecycles or frequent updates.
Ready to Bridge the Gap?
Bridge production with 3D printing eliminates the traditional barriers between prototype and full-scale manufacturing. Whether you’re validating market demand, filling seasonal orders, or maintaining supply chain flexibility, FDM technology provides a practical path forward. Our Charlotte facility specializes in these transitional volumes, with the consistency and quality control your business demands.
Start your bridge production project today at CLT 3D Printing’s custom order page.
