Metal-to-Plastic Part Conversion Guide

Manufacturing teams often overlook one of the most powerful cost-reduction strategies available today: converting metal components to engineered plastics through 3D printing. With modern materials like PETG offering impressive mechanical properties and FDM technology delivering consistent results, the opportunities for smart material substitution have never been better.

The numbers make a compelling case. Industry data shows that converting appropriate metal parts to 3D-printed plastics typically reduces part costs by 40-80%, eliminates minimum order quantities, and can cut lead times from weeks to days. But success requires understanding which parts are good candidates and how to redesign them for optimal performance in plastic.

When Metal-to-Plastic Conversion Makes Sense

Not every metal part should become plastic - that’s the first rule of successful conversion. The best candidates share specific characteristics that play to the strengths of FDM 3D printing while avoiding its limitations.

Low-stress components excel in plastic. Brackets, housings, covers, guides, and fixtures that don’t bear significant loads often perform just as well in PETG or even PLA as they do in aluminum or steel. A machine guard that costs $45 to machine from aluminum might cost $8 to print in PETG, with identical functionality.

Consider the operating environment carefully. Temperature resistance varies significantly between plastics. PLA softens around 60°C (140°F), making it unsuitable for engine compartments or outdoor summer applications. PETG maintains its properties up to about 80°C (176°F), while ABS can handle slightly higher temperatures. For truly high-temperature applications above 100°C, specialized materials like ASA or nylon become necessary - though these remain significantly cheaper than metal alternatives.

Chemical resistance also matters. PETG resists many oils and chemicals that would degrade PLA. ABS handles petroleum products well but struggles with acetone and some solvents. Understanding your part’s chemical exposure helps select the right material.

Design Changes That Enable Successful Conversion

Converting a metal design directly to plastic rarely works optimally. Plastic parts need different design strategies to perform well, and 3D printing enables geometries that would be impossible or prohibitively expensive in metal.

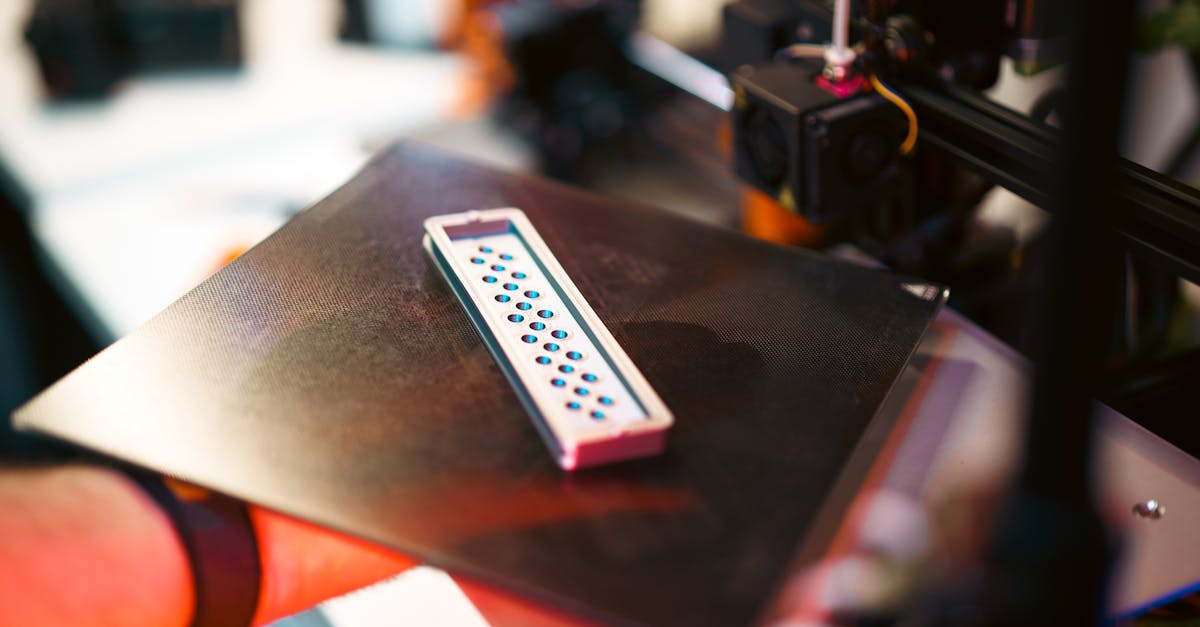

Photo by Jakub Zerdzicki on Pexels

Embrace topology optimization. Unlike machined metal parts that often have uniform wall thicknesses dictated by tool access, 3D-printed parts can have variable wall thicknesses, internal lattice structures, and organic shapes that put material only where needed. A metal bracket might weigh 200 grams, while a topology-optimized plastic version could weigh 40 grams and still meet all performance requirements.

Add strategic reinforcement. Ribs, gussets, and honeycomb infill patterns can dramatically increase part stiffness without adding much weight or material cost. A flat plastic panel might flex unacceptably, but adding a grid of 2mm ribs on the back surface can make it rigid enough to replace sheet metal.

Design for layer orientation. FDM prints are strongest along the layer lines and weakest between layers. Orient your part so that loads run along layers rather than trying to separate them. A bracket that sees pulling forces should be printed so layers run lengthwise along the load path.

Real Mechanical Properties You Can Count On

Understanding actual material properties helps set realistic expectations for metal-to-plastic conversions. Here are typical values for our primary materials when properly printed:

PLA delivers surprising rigidity. With a tensile strength around 50 MPa and elastic modulus near 3.5 GPa, PLA actually exceeds some soft metals in stiffness. It’s brittle rather than ductile, so it works best for parts that see consistent loads rather than impacts.

PETG balances strength and toughness. At 40-50 MPa tensile strength but with much better elongation before breaking (typically 100-130% vs PLA’s 5-10%), PETG handles dynamic loads and slight impacts that would shatter PLA. Its chemical resistance and outdoor stability make it our go-to for functional parts.

Wall thickness and infill percentage matter enormously. A part with 2mm walls and 20% infill might have 25% of the strength of the same part with 4mm walls and 60% infill. Unlike metal parts where material properties are consistent throughout, 3D-printed parts let you tune strength exactly where needed.

Calculate Your Real Cost Savings

The economics of metal-to-plastic conversion extend beyond just material costs. Consider all factors when evaluating conversion candidates:

Material cost differences are dramatic. Aluminum stock might cost $5-10 per pound, while PETG filament runs $15-20 per kilogram - and plastics are much less dense. A part that requires $20 of aluminum might need only $2 of PETG.

Machining time disappears. CNC machine time often runs $60-150 per hour. A complex bracket requiring two hours of 3-axis milling costs $120-300 in machine time alone. The same part might print unattended overnight for under $10 in total cost.

Setup and programming costs vanish. CNC programming for complex parts can take hours. Generating 3D print files takes minutes. For small quantities, this difference alone can make plastic parts 90% cheaper than metal equivalents.

No minimum order quantities. Need just one prototype? Three production parts? Fifty units? 3D printing costs scale linearly with quantity - no setup charges or minimum runs required.

Common Conversion Applications

Certain part categories consistently show excellent results when converted from metal to engineered plastics:

Manufacturing fixtures and jigs. These non-product parts often require complex geometries but face minimal stress. A custom aluminum fixture costing $500 might perform identically in PETG for $30. We regularly print drill guides, assembly fixtures, and inspection gauges that replace expensive metal tooling.

Electronic housings and enclosures. Unless RF shielding or extreme heat dissipation is required, plastic enclosures work brilliantly. Adding brass heat-set inserts provides strong, reusable threaded connections. The design freedom allows integrated clips, cable management, and ventilation patterns impossible in sheet metal.

Automotive interior components. Dashboard brackets, trim clips, cable guides, and similar parts excel in plastic. The temperature resistance of PETG or ABS handles typical interior conditions, while the weight savings improve fuel economy.

Machinery guards and covers. Safety covers, belt guards, and access panels often need complex shapes but face minimal mechanical stress. Printing them allows perfect fit to existing equipment without expensive custom metalwork.

Making the Conversion Decision

Evaluating parts for metal-to-plastic conversion requires systematic thinking. Consider these factors:

Load analysis comes first. What forces does the part actually see? Many “metal” parts are metal simply because that’s how they’ve always been made, not because they need metal’s strength. Document actual loads, not assumed ones.

Temperature mapping reveals options. Measure actual operating temperatures, not worst-case specifications. A part specified for 150°C operation might never exceed 70°C in practice, bringing it within PETG’s capabilities.

Quantity and revision frequency matter. Parts that change frequently or need small quantities benefit most from 3D printing’s flexibility. If you’re ordering 10,000 identical parts yearly, injection molding might win. For 50 parts that get revised quarterly, 3D printing excels.

Consider hybrid approaches. Not everything must be all-plastic. Metal inserts, fasteners, and wear surfaces can combine with printed plastic bodies for optimal performance and cost.

Start Your Conversion Analysis

Converting appropriate metal parts to 3D-printed plastics represents one of the fastest returns on investment in modern manufacturing. The key lies in selecting the right candidates and redesigning them to leverage plastic’s unique advantages rather than simply copying metal designs.

Start by auditing your low-stress metal parts. Look for brackets, housings, fixtures, and covers that could perform equally well in engineered plastics. Calculate not just material costs but total production costs including setup, programming, and lead time value. Many manufacturers discover dozens of conversion opportunities hiding in plain sight.
